Parker Fly 98 Deluxe Ghost Install Tutorial Pics!
« on: July 18, 2011, 09:31:46 AM »
Hi guys I have done a ghost mod in my 98 fly deluxe with the original ribbon cable and pcb and everything works great! I developed
a tutorial for those wishing to do the mod that have original circuitry installed.
For my application I choose not to use the acoustiphonic but rather use my fishman piezo PCB. I had retained
full functionality of all controls including being able to blend and mix with piezo, mags, and midi!
I did not use a midi volume pot and simple just use the level on my midi converter. By using your existing piezo saddles
you will save a considerable amount of money

WHAT YOU WILL NEED
1: A whole lot of patience and time so grab a bite to eat while your at it
2: Send the wife shopping for the day with a few hundred bucks anyway let's get to it
3: Call graph tec and tell them you would like to purchase 6 of the pigtail harnesses that
   you will be soldering to the piezos. Talk to Morgan in Tech if you call and he/she doesn't know.
4: You will need the hexpander kit PK-0440-00 which comes with midi volume, quick switch, program up/down
switch, hexpander board, harness that will not be used, and a 13 pin jack.
5: You will also need to order the 7 pin harness part number PE-0182-G0
6: A toggle switch (if you want to manually control the switched battery ground to turn your guitar on/off)

WHAT AND WHY IS THE 7 PIN HARNESS USED?
The midi converter such as a axon or roland allows you to connect your guitar amplifier directly to the midi converter
which means you will not need to have a 13pin midi cable and a 1/4 cable plugged into your guitar but rather you will be
able to use only the 13pin cable and omit the 1/4 cables because the harness allows us to tap off the 1/4 jack to send a
signal down pin 7 which will go to your guitar amp. It beats having to cables plugged in (1 for midi) (1 for guitar)
Also the 7 pin harness goes across pin "p" on the hexpander which is VITAL because this is where the hexpander board will pass
all the signals from your saddles to a "sum" which is all 6 signals from the fishman that will allow us to send to our pre-amp
board that comes in the stock deluxe fly.







PICTURE 1

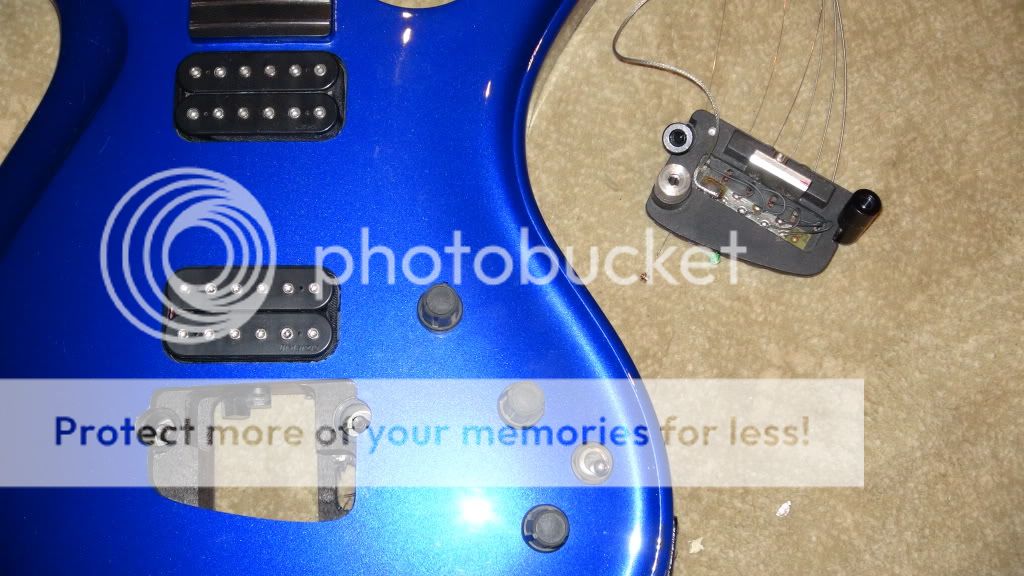

Bridge Removed


Picture 2

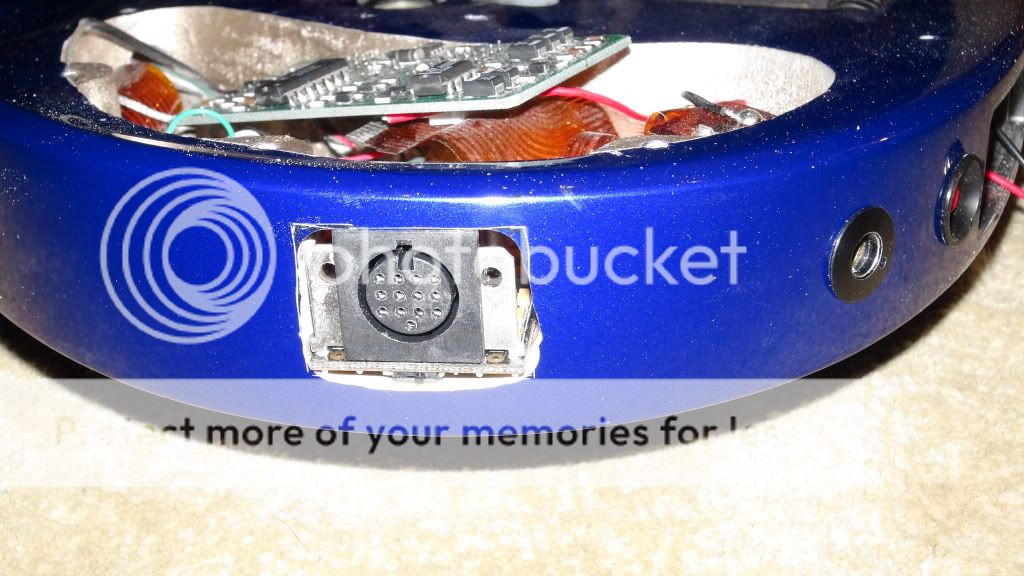

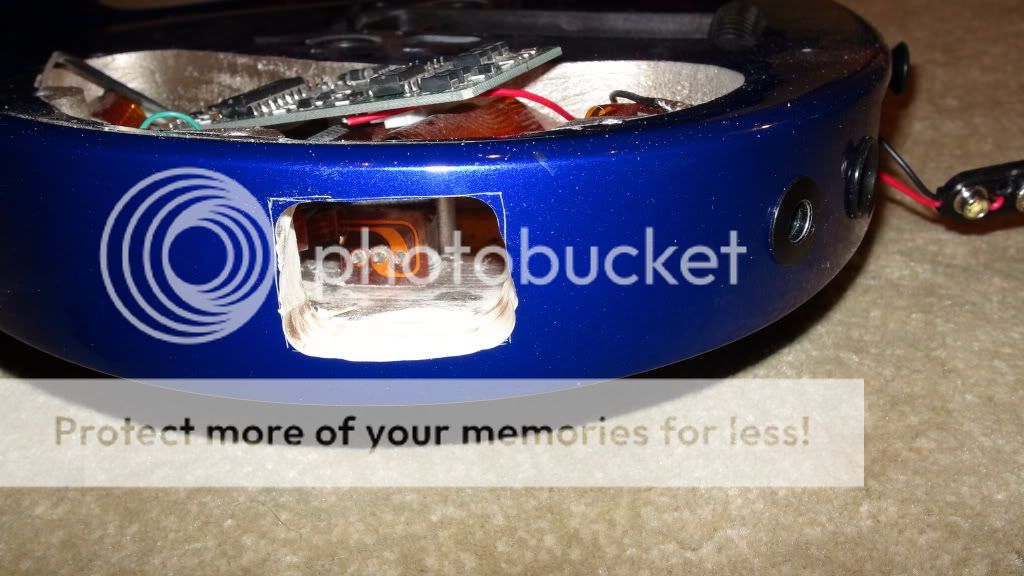

A hole was cut using a dremel tool to accommodate the 13 pin connector


Picture 3
13 pin connector seated in the cavity


Picture 4

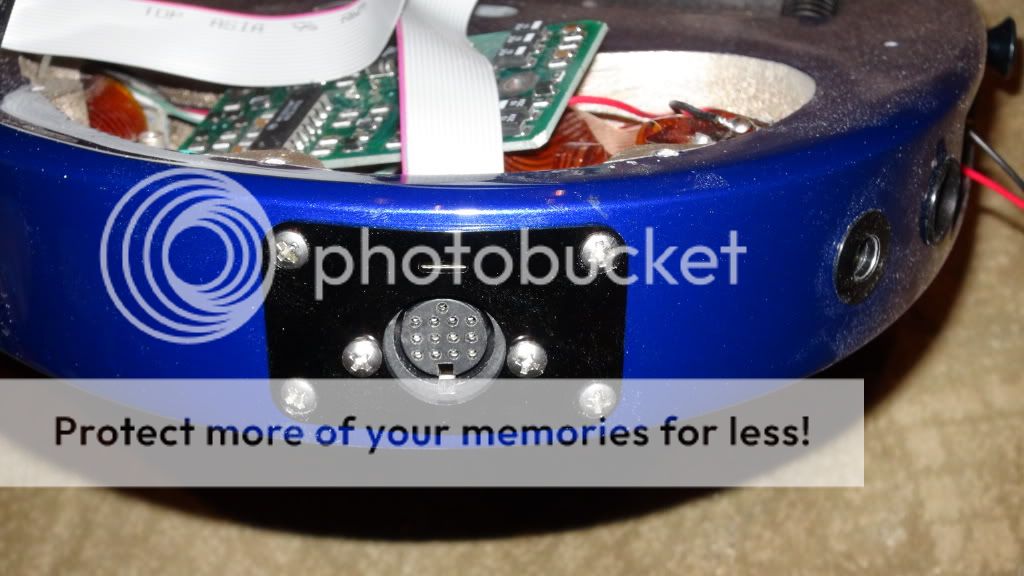

Mounting plate install on the 13 pin connector. Be sure to pre-drill the holes slightly
smaller than the screws


Picture 5

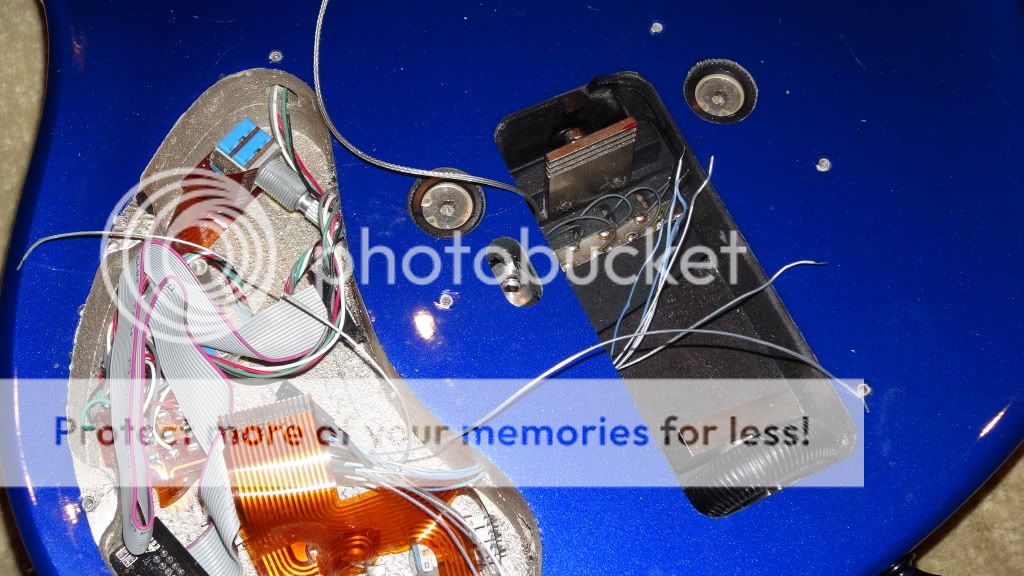

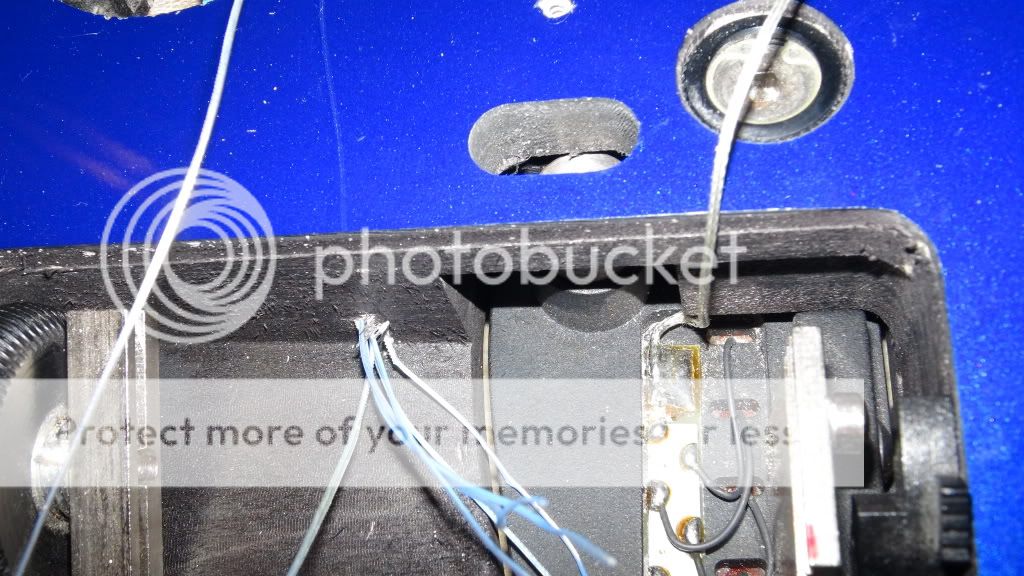

Pigtails purchased from Graphtech. I drilled a very small hole through the guitar
to rout the wires through. I used the blue wires as signals the silvers as grounds


Picture 6

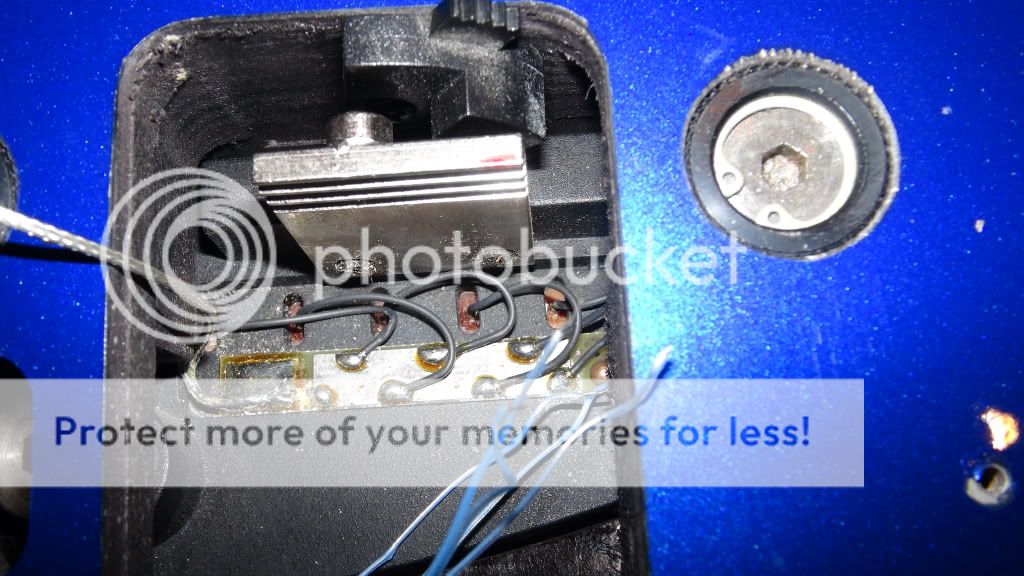

Look closely and you will notice I cut the tip of the signal wire from the
fishman to the piezo bus and using the sheild still attached the pad of solder
as ground back to the PCB Fishman board.


Picture 7

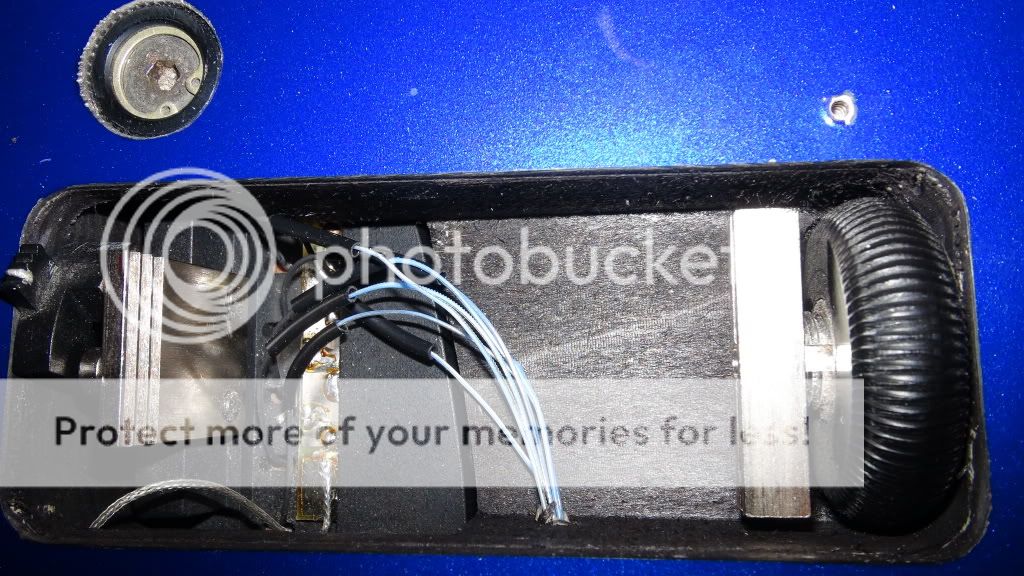

shows where I drilled the hole through


Picture 8
I gently removed the piezo wires by un-soldering from the piezo bus and feed
each pig tail with a blue signal wire by soldering them together
and placing a heat shrink tube on the wires. Be sure to put the heat
shrink tube on before soldering and also DO NOT heat them up until you verify
all saddles are working through the hexpander. On the pig tail where the
harness plugs into the board I took a sharpie and mark the connector heads
with numbers 6,5,4,3,2,1 to be able to keep track which wire is what. This
is important when plugging into the hexpander board.


Picture 9

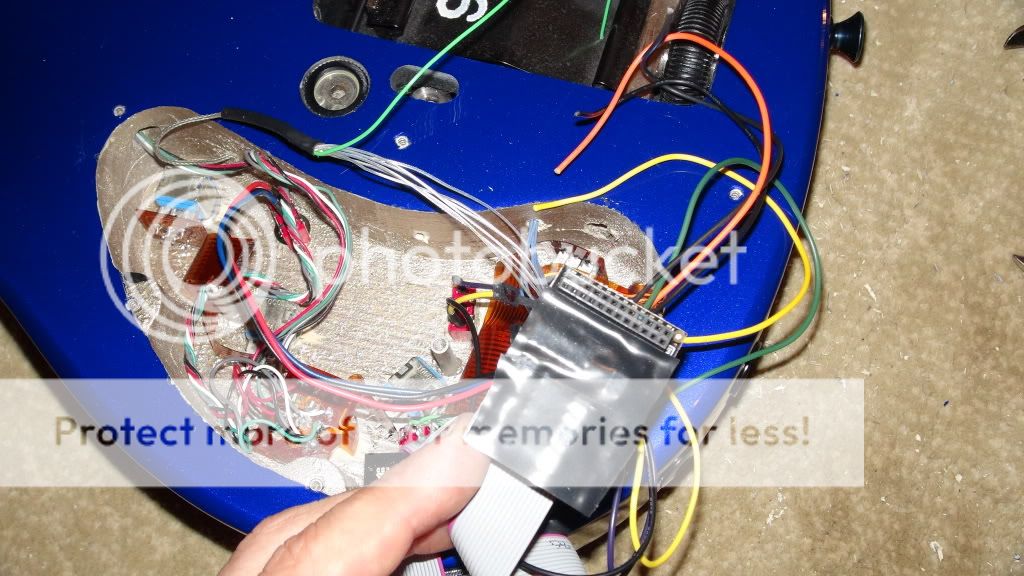

I applied electrical tape to the bottom of the hexpander board. Also
if you look at the shielded cable (top left) I soldered all the grounds
from the pig tail harness to the shield along with a single green ground wire which
will go on the PCB labeled GRD.
The up down switch, a battery switch and quick switch were all mounted at this
point in such a way that it's ergonomic but also clears all other electronics


The board fits snugly between the pots
and all connections are made.


Picture 11

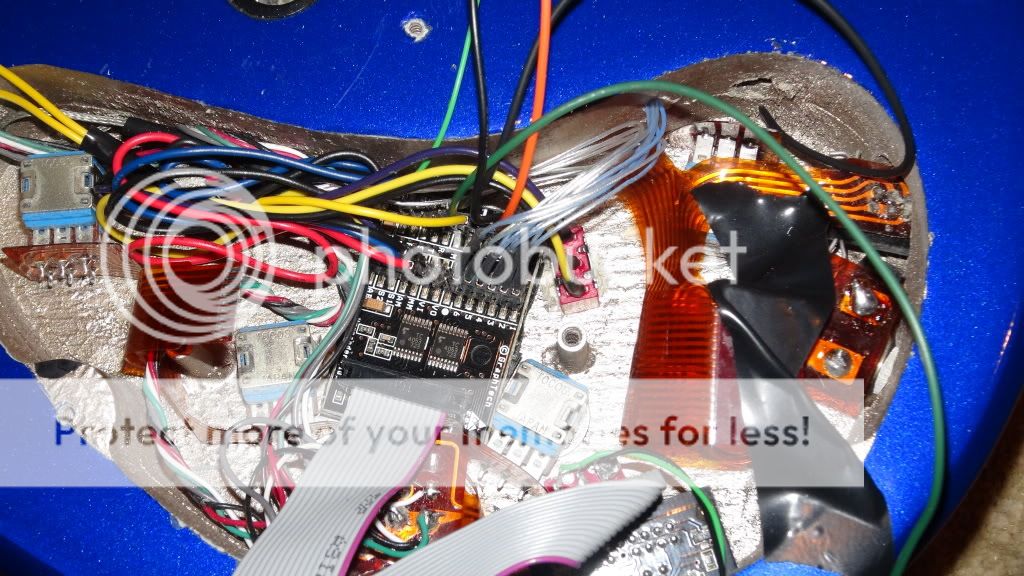

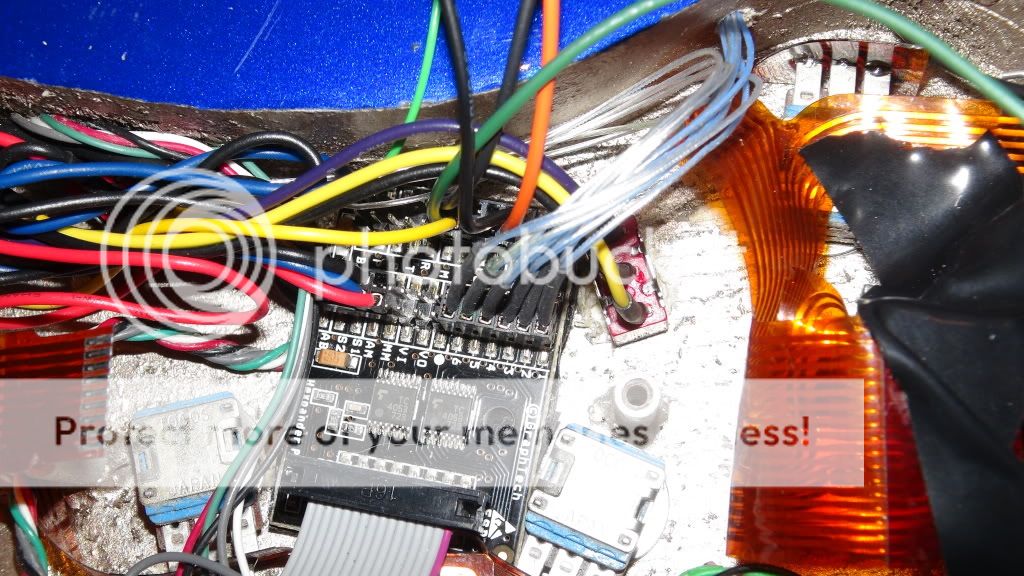

As you notice all connections to the hexpander are made. I have used a 7 pin harness and make sure the orange
wire stars at pin "P' and the blk wire will be on the left! This will be your SUM piezo out and ground which
will connect later to the fishman PCB stock with the fly. Here is where the wires will
go on the 7 pin harness.
2 BLACK WIRES (will go to ground on the PCB later)
ORANGE WIRE will go to Pizeo IN
YELLOW WIRE (Not used) I taped it back
GREEN WIRE (connect this to the stereo output jack (this is the smallest prong which is common to the
mags etc..)


Picture 12 deleted

Picture 13 deleted

Picture 14

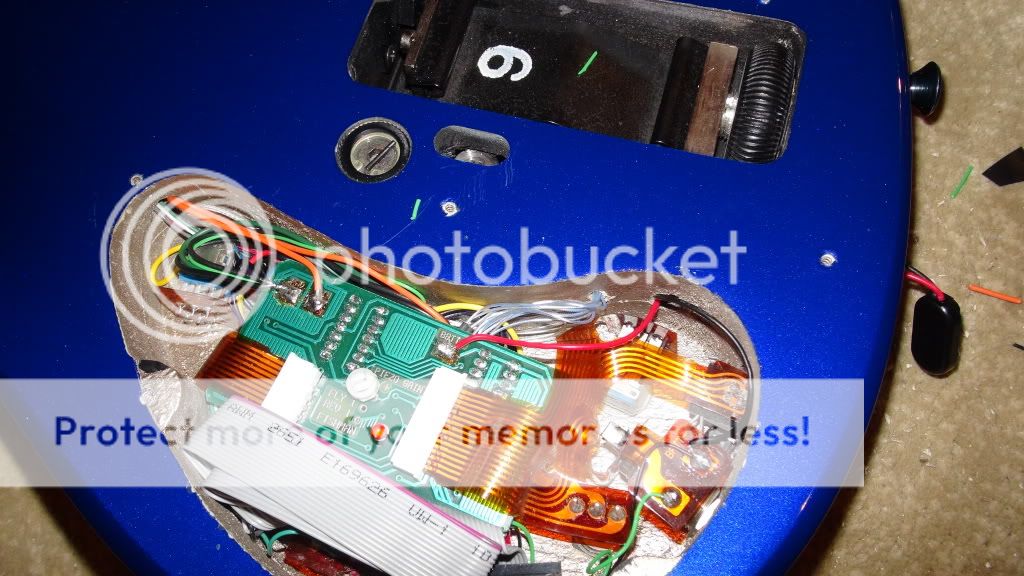

The PCB is now in place
Strip and put the following wires together
2 Black Wires,
The Green Wire that was soldered to all the pig tails and old fishman bridge ground
NOW: Solder all of them together and solder to the PCB GRD which is the solder pad
furthest to the left
The orange wire (which comes from the 7 pin harness) is the sum or all saddles together
output and is soldered to the PCB labeled "in" BE SURE THAT THE TWO SOLDER PADS DO
TOUCH EACH OTHER
Also if you look where the Battery Neg comes in you will see two wires. This is my jack
on/off switch that allows me to manual control the switch ground. You have two options.
You can do this mod with a simple on/off switch or you can simply plug a dummy cord with the
end removed to turn the guitar on and this will allow you to send the signal on pin7.


Picture 15

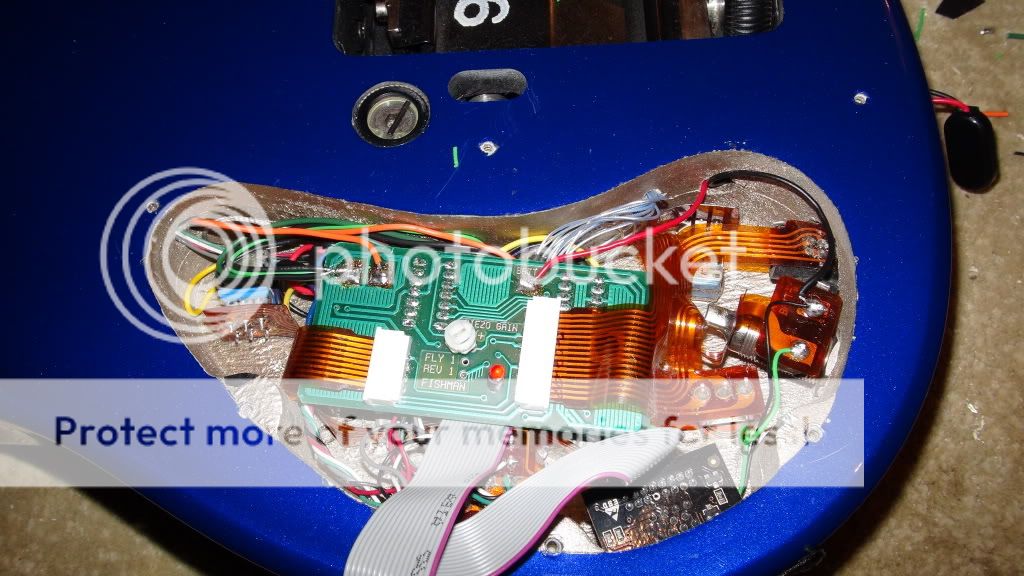

All connections in place and ribbon cabled formed nice and neat in the electronics cavity


Picture 16
A good polish


Picture 17

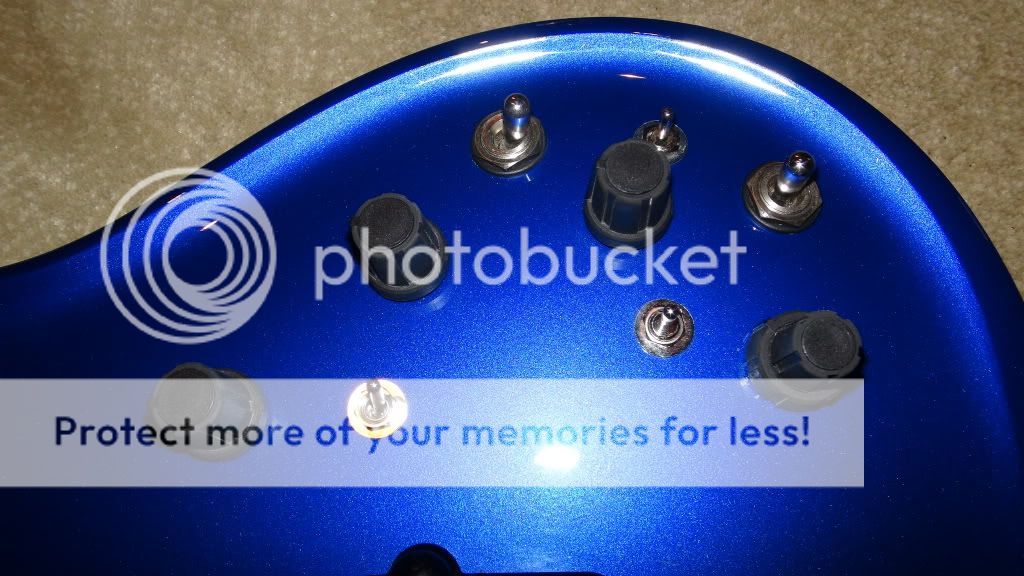

Switch arrangement
The switch between the master volume and mag volume is a graph tech quick switch
that controls midi/guitar/guitarmidiboth
The switch between the two toggle switches for mag or piezo is my mod guitar on/off switch
Please note I use a on/off/on switch and soldered the two on's together so either switch up or down
will turn the guitar on but when it's in the center the switch turns the guitar off or guitar thinks
there is no 1/4inch jack. Just remember to put the switch in the center position when you are done
playing because you will drain the battery.
The last toggle next to the piezo volume/tone is a graph tech program up/down switch and it's used
to switch the midi banks in your midi converter. it's a momentary switch and works great!


Picture 18

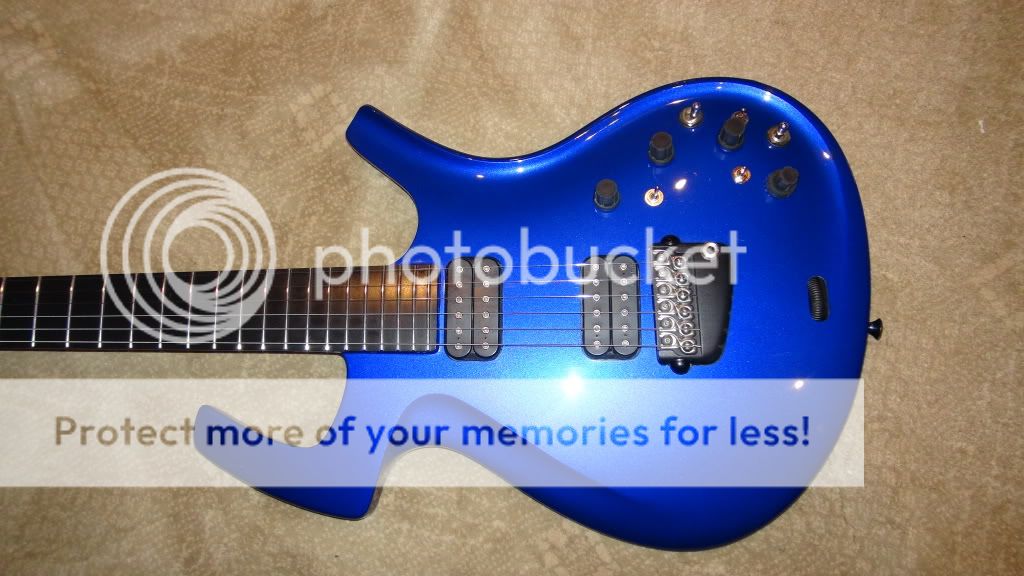

Just another angle.


Parker Fly 98 Deluxe Ghost Install Tutorial Pics!

Offline plan-x

  • Sr. Member
  • ****
  • Posts: 465
    • http://www.myspace.com/wichmanbrewster
Parker Fly 98 Deluxe Ghost Install Tutorial Pics!
« Reply #1 on: July 18, 2011, 10:31:18 AM »
Nice Freakin work!!

00' Fly deluxe S2
02' NiteFly P (Poplar)
06' NiteFly SA (w/coil tap mod)

John W

Plan-x

http://www.myspace.com/wichmanbrewster
00' Fly deluxe S2 HSS
02' NiteFly P (Poplar) HH


John W...in the Mojave
Plan-x
http://www.myspace.com/wichmanbrewster

Parker Fly 98 Deluxe Ghost Install Tutorial Pics!

Offline Paul Marossy

  • Hero Member
  • *****
  • Posts: 7330
  • Excuse me while I kiss The Fly
Parker Fly 98 Deluxe Ghost Install Tutorial Pics!
« Reply #2 on: July 18, 2011, 11:59:49 AM »
Nice work. That's a lot to get into that control cavity!

__/\\/\\__PJM__/\\/\\__
http://www.DIYguitarist.com
http://www.myspace.com/j201jams

Parker Fly 98 Deluxe Ghost Install Tutorial Pics!

Offline danjazzny

  • Hero Member
  • *****
  • Posts: 2919
Parker Fly 98 Deluxe Ghost Install Tutorial Pics!
« Reply #3 on: July 18, 2011, 12:57:42 PM »
Wow! Great job!!  [8D]

'97 Alex Artist 4lbs12oz; '99 Simonized Artist 4lbs13oz; '97  TransRed Artist 4lbs9oz; '98 3-Tone Sunburst Artist (Hardtail)5lbs2oz; '99 Tobacco Sunburst Supreme 5lbs13oz; Line6 Flextone 3 Amp; Line 6 Vetta II Amp

'99 Simonized Artist 4lbs13oz; '97 TransRed Artist 4lbs9oz; '00 TransCherry Classic w/SD's 5lbs3oz; Line 6 Vetta II

Parker Fly 98 Deluxe Ghost Install Tutorial Pics!

Offline Bill

  • Hero Member
  • *****
  • Posts: 4839
  • What is this ?
Parker Fly 98 Deluxe Ghost Install Tutorial Pics!
« Reply #4 on: July 18, 2011, 05:32:35 PM »
Way over my head but very cool.

Thanks for posting this !

A few Flys in my soup
A few Flys in my soup

Parker Fly 98 Deluxe Ghost Install Tutorial Pics!

Offline joedreamliner787

  • Full Member
  • ***
  • Posts: 200
Parker Fly 98 Deluxe Ghost Install Tutorial Pics!
« Reply #5 on: July 18, 2011, 07:49:24 PM »
Thanks for the kind comments everyone! It's actually not as crowed as you think. I am an electrician by trade so wiring happens to be something
very easy to do. If one of moderators are on here he/she should make this post a sticky. I also sent this to graphtec just in case anyone ever requests it. Both my Galaxy Gray and my Kandy Tangerine have the roland synth and I personally like the ghost way better.


Parker Fly 98 Deluxe Ghost Install Tutorial Pics!

Offline Paul Marossy

  • Hero Member
  • *****
  • Posts: 7330
  • Excuse me while I kiss The Fly
Parker Fly 98 Deluxe Ghost Install Tutorial Pics!
« Reply #6 on: July 18, 2011, 08:03:17 PM »
That's still a lot of stuff to get in that control cavity. It does help that you are working with wiring all the time and know how to do that neatly. A lot of people would probably think it couldn't be done.

I've built a bunch of DIY stuff over the years, and neat wiring is kind of an art when compared to the rest of what has to be done. In a tube amp, if you don't wire stuff properly (so called "lead dress"), you can end up with a VERY noisy amp. Fortunately in your case, the important wires are all shielded.

__/\\/\\__PJM__/\\/\\__
http://www.DIYguitarist.com
http://www.myspace.com/j201jams
« Last Edit: July 18, 2011, 08:05:06 PM by Paul Marossy »

Parker Fly 98 Deluxe Ghost Install Tutorial Pics!

Offline joedreamliner787

  • Full Member
  • ***
  • Posts: 200
Parker Fly 98 Deluxe Ghost Install Tutorial Pics!
« Reply #7 on: July 18, 2011, 08:10:03 PM »
quote:
Originally posted by Paul Marossy

That's still a lot of stuff to get in that control cavity. It does help that you are working with wiring all the time and know how to do that neatly. A lot of people would probably think it couldn't be done.

I've built a bunch of DIY stuff over the years, and neat wiring is kind of an art when compared to the rest of what has to be done. In a tube amp, if you don't wire stuff properly (so called "lead dress"), you can end up with a VERY noisy amp. Fortunately in your case, the important wires are all shielded.

__/\\/\\__PJM__/\\/\\__
http://www.DIYguitarist.com
http://www.myspace.com/j201jams



Definitely true. I can always tell if someone did a DIY tube amp.
Wiring neatly is without a doubt an art and you can bet all my fire alarm, security and electrical panels are all tagged labeled and neat. No corners cut ever!
