JJ Custom Works Free-Way Switch in Parker Fly Artist
« on: September 16, 2015, 10:37:40 PM »
I recently installed a very cool six-way switch in my Parker Fly Artist (refined) I thought I'd tell you guys about. First some background...

I previously wired my dual-humbucker Fly Artist with two three-way switches to allow me to do coil splitting while selecting the inner or outer coils (see old thread for details: http://forums.parkerguitars.com/index.php?topic=11985.0). Since the pickups' magnetic polarity are N/S & N/S, when I'd select the inside or outside coils, it would be hum-canceling and have a sound like a strat or tele. I loved those settings more than the regular humbuckers, and used them most. But in order to wire the guitar like that, I had to remove the switch for the piezo pickups, so in time I looked for an alternative solution that would allow with to add back the piezo pickup wiring.

I first came across the standard Free-Way switch, which is a six-way switch with thousands of possibilities, but none of them allowed me to wire the guitar the way I wanted. Then I discovered JJ Custom Works had a special version that did exactly what I wanted, allowing me to choose the inner or outer coils in parallel (and also the inner coils in series), along with the standard three-way humbucker settings. Here's a diagram of the settings:

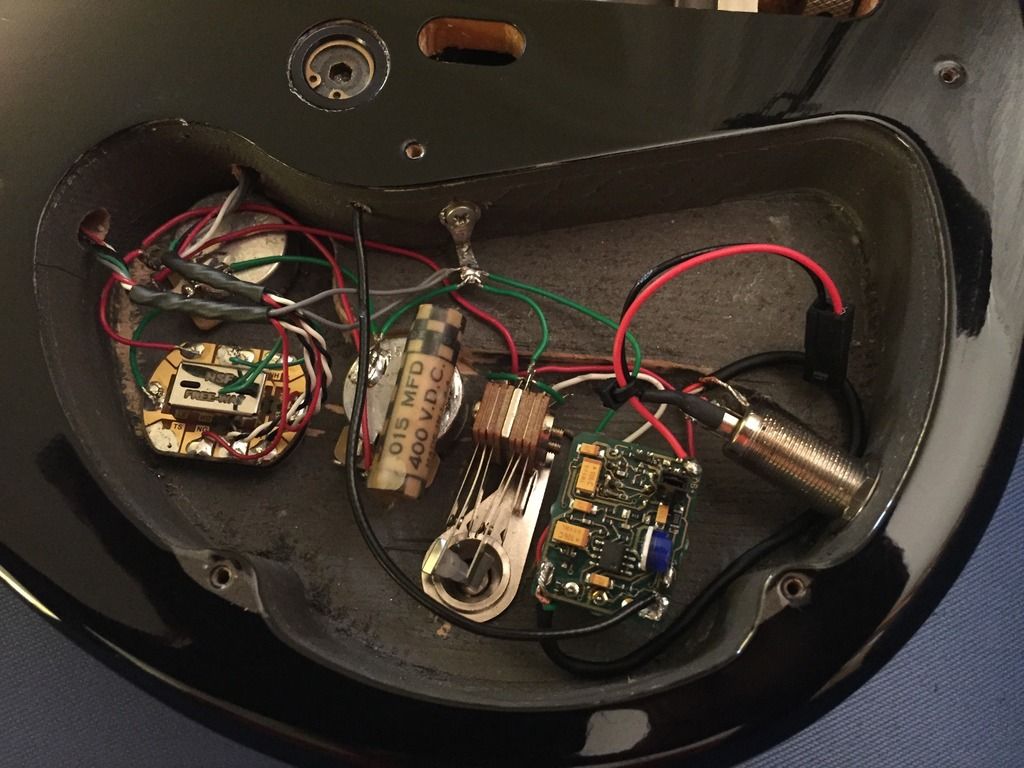

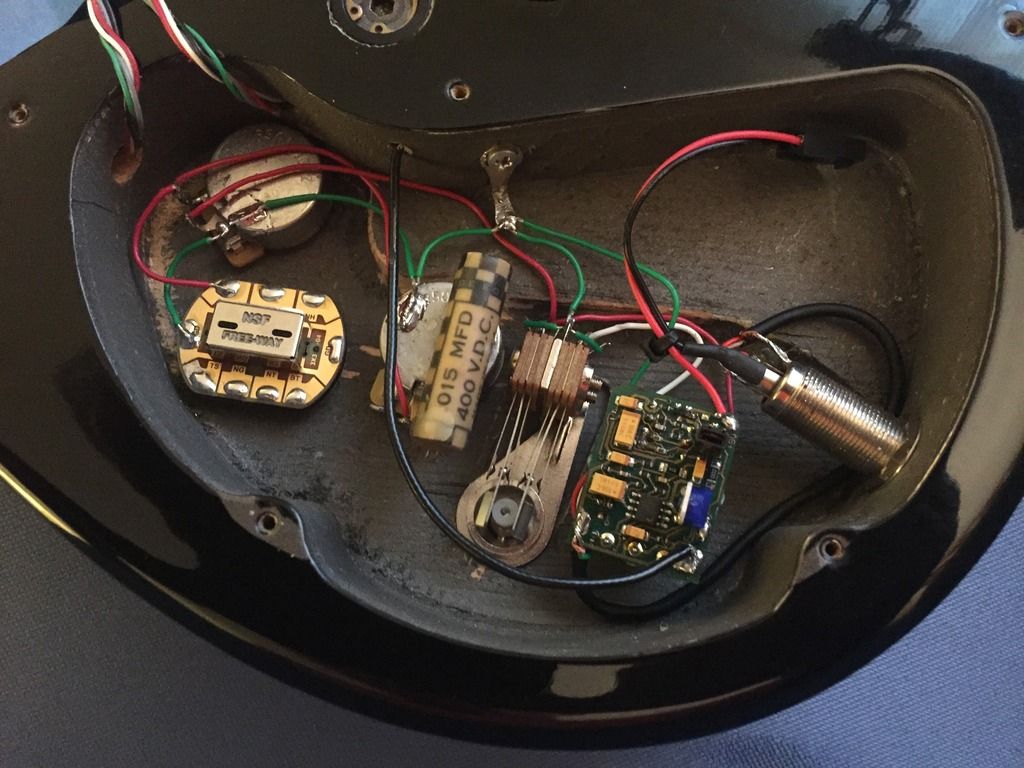

I wired up the switch today and the results are amazing. The switch is so easy to use, and easily unlocks three new sounds. I've attached a couple of pictures below showing the wiring of the guitar, first without the pickups wired, and then with the pickups wired.  Sorry I forgot to snap a picture from the front, but basically the guitar looks stock.

Check out JJ's website if you're interested in more details about the switch: http://www.jjcustomworks.com/

A couple caveats I'll warn you about though:

- For optimal results, on some guitars you might need to reverse the magnet in one of your pickups (or flip the pickup), depending on their magnetic polarity. With the Gen 2 Dimarzio pickups, it's not necessary; I can't comment on other Fly pickups (though I have a set of Gen 1's lying around I could check the polarity on).

- Figuring our the wiring for your specific pickups might take some time since you'll need to take into account the magnetic polarity of your pickups and the wire color scheme used by the pickup manufacturer. I spent about an hour thinking in through and verifying my plan before I actually wired the guitar. If you're using Dimarzio's, I can share the wiring - otherwise, it'll take some work on your behalf, and if you don't have a fair amount of experience wiring guitars, I'd recommend getting a professional to do it.

I give the above caveats for in case you're looking to use the switch on a different guitar than I am, but if you have a refined Fly with Dimarzio pickups, it's actually quite easy to install (assuming you have some experience with guitar wiring).

P.S. I have no affiliation with JJ Cutom Works or Free-Way switches; I just love the product.
